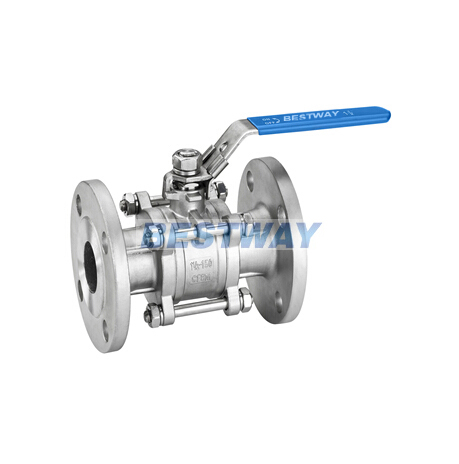

Product Numbers:BW505
Product description:
1)Material:CF8,CF8M,CF3M,304,316,316L,WCB
2)Full Port
3)Working Pressure: 150LB/300LB
INTRODUCTION
Descriptions:
1) Design standard: ASME B16.34
2) Flanged ends: ASME B16.5 CLASS 150/300
3) Face to Face: ASME B16.10
4) Fire safe design: API 607
5) Testing: API 598
6) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304
ASTM A216-WCB
7) Size: DN15- DN100, 1/2” - 4”
8) Working pressure: 150LB/300LB
9) Seat Material: PTFE,RPTFE
10) Working temperature: -20 to 180°C
11) Working medium: Water, Oil, Gas, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Full Bore
Pressure Testing:
|
Standard Pressure |
150LB |
300LB |
|
Shell Pressure Testing |
3.0 Mpa |
7.5 Mpa |
|
Water Seal Testing |
2.2 Mpa |
5.5 Mpa |
|
Air Seal Testing |
0.6 Mpa |
0.6 Mpa |
