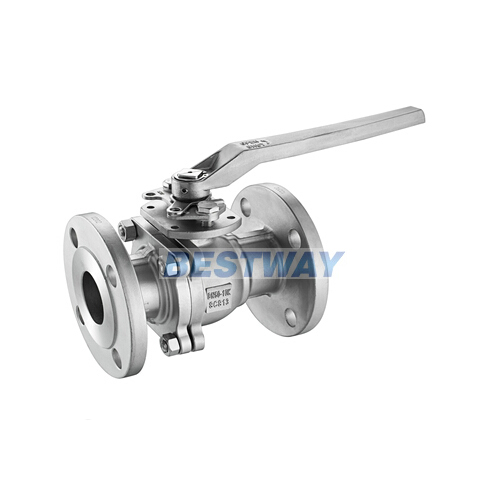

Product Numbers:BW504
Product description:
1)Material:SCS13,SCS14,,304,316,PH2
2)Full Port
3)Working Pressure: 10K/20K
4)ISO5211 Mounting Pad
INTRODUCTION
Descriptions:
1) Design standard: ASME B16.34
2) Flanged ends: JIS B2220 10K/20K
3) Face to Face: JIS B2002
4) Fire safe design: API 607
5) Testing: JIS B2003
6) Mateiral:SCS13,SCS14
6) Size: 15A- 100A
7) Working pressure: 10K/20K
8) Seat Material: PTFE,RPTFE
9) Working temperature: -20 to 180°C
10) Working medium: Water, Oil, Gas, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) 2 Belleville Washer to Self-adjust Packing
4) ISO 5211 Mounting Pad for Easy Automation
5) Pressure Blance Hole in Ball Slot
6) Full Bore
Pressure Testing:
|
Standard Pressure |
10K |
20K |
|
Shell Pressure Testing |
3.0 Mpa |
7.5 Mpa |
|
Water Seal Testing |
2.2 Mpa |
5.5 Mpa |
|
Air Seal Testing |
0.6 Mpa |
0.6 Mpa |
