home >> Products >> Ball Valve >> Flanged Ball Valve >> 3PC Ball Valves Flanged Ends 150/300LB ISO5211 Direct Mounting Pad

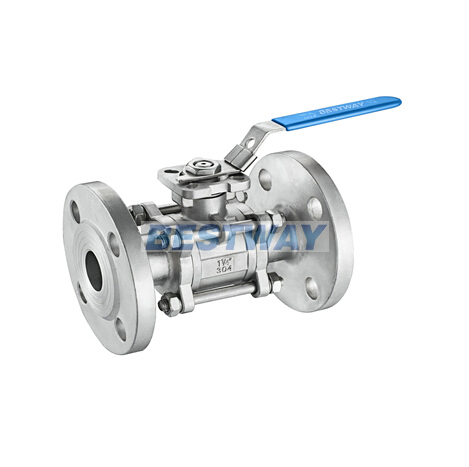

3PC Ball Valves Flanged Ends 150/300LB ISO5211 Direct Mounting Pad

Product Numbers:BW506

Product description:
1)Material:CF8,CF8M,CF3M,304,316,316L,WCB
2)Full Port
3)Working Pressure: 150LB/300LB
4)ISO5211 Direct Mounting Pad

INTRODUCTION

Descriptions:

1) Design standard: ASME B16.34

2) Flanged ends: ASME B16.5 CLASS 150/300

3) Face to Face: ASME B16.10

4) Fire safe design: API 607

5) Testing: API 598

6) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304

ASTM A216-WCB

7) Size: DN15- DN100, 1/2” - 4”

8) Working pressure: 150LB/300LB

9) Seat Material: PTFE,RPTFE

10) Working temperature: -20 to 180°C

11) Working medium: Water, Oil, Gas, Acid, etc

Features:

1) Blow-out proof stem

2) Investment Casting Body

3) 2 Belleville Washer to Self-adjust Packing

4) ISO 5211 Direct Mounting Pad for Easy Automation

5) Pressure Blance Hole in Ball Slot

6) Full Bore

Pressure Testing:
