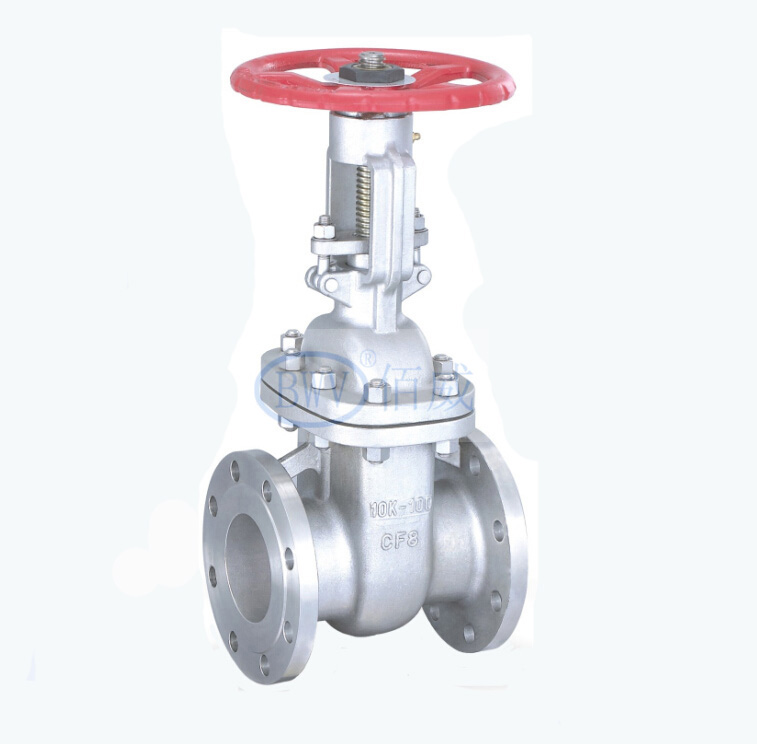

Product Numbers:BW-G04
Product description:
1)Material:SCS13,SCS14,304,316,PH2
2)Full Port
3)Working Pressure: 10K/20K
INTRODUCTION
Descriptions:
1) Design standard: JIS B2071
2) Flanged ends: JIS B2220
3) Face to Face: JIS B2002
5) Testing: JIS B2003
6) Metal to metal sealing
7) Rising Stem Design
8) Hand Wheel Operation
9) Material: SCS13,SCS14 ,PH2
10) Sizes: 15A~ 400A
11) Working pressure: 10K/20K
12) Working temperature: -20 to 180°C
13) Working medium: Water,Oil, Acid, etc
Pressure Testing:
|
Standard Pressure |
10K |
20K |
|
Shell Pressure Testing |
3.0 Mpa |
7.5 Mpa |
|
Water Seal Testing |
2.2 Mpa |
5.5 Mpa |
|
Air Seal Testing |
0.6 Mpa |
0.6 Mpa |
