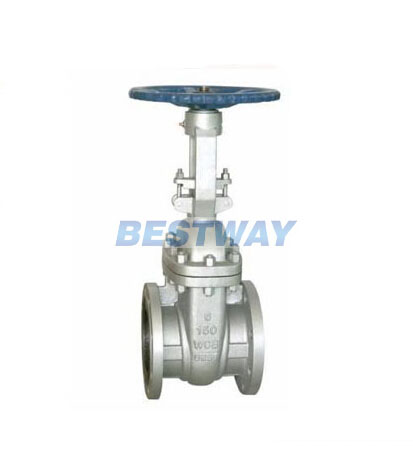

Product Numbers:BW-G03
Product description:
1)Material:WCB
2)Full Port
3)Working Pressure: 150LB
INTRODUCTION
Descriptions:
1) Design standard: ASME B16.34
2) Flange standard: ASME B16.5
3) Face to Face: ASME B16.10
4) Inspection standard: API598
5) Material: ASTM A216-WCB
ASTM A351-CF8,CF8M,304,316
6) Working pressure: 150LB
7) Sizes: 1/2" ~ 16"
8) Metal to metal sealing
9) Rising Stem Design
10) Hand Wheel Operation
11) Working temperature:-20~ 180 degree C
12) Working medium: Water,Oil,Acid,ect.
Pressure Testing:
|
Standard Pressure |
150LB |
|
Shell Pressure Testing |
3.0 Mpa |
|
Water Seal Testing |
2.2 Mpa |
|
Air Seal Testing |
0.6 Mpa |
