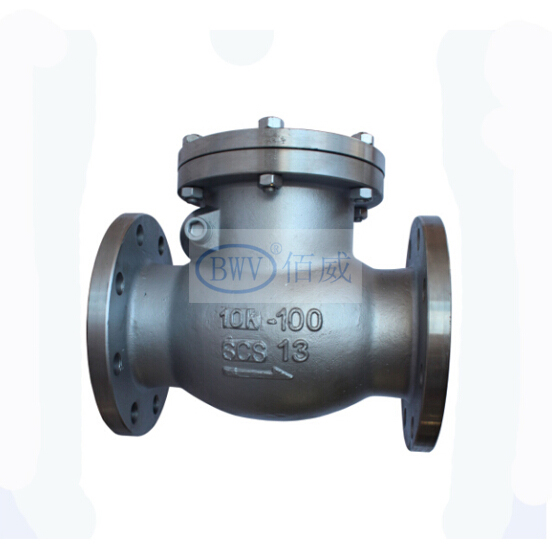

JIS 10K/20K Flanged Swing Check Valve

Product Numbers:BW-C05

Product description:
1) Material：SCS13/CF8/304,SCS14/CF8M/316,WCB
2) Sizes：1/2" - 16"
3) Working Pressure：10K/20k

INTRODUCTION

Descriptions:

1) Design standard: JIS B2074, JIS B2084

2) Flange standard: JIS B 2212,JIS B2214

3) Face to Face: JIS B2002

4) Inspection standard: JIS B2003

5) Material: SCS13/CF8/304,SCS14/CF8M/316,WCB

6) Working pressure: 10K/20K

7) Sizes: 15A~ 400A

8) Metal to Metal sealing

9) Working temperature: -20 ~ 180 degree C

10) Working medium:Water, Oil, Acid
