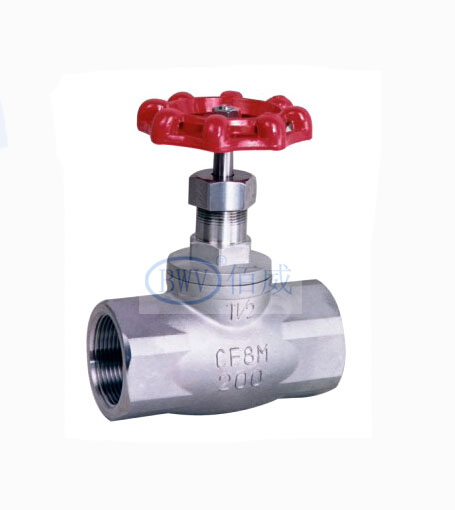

Product Numbers:BW-GL01
Product description:
1)Material:CF8,CF8M,CF3M,304,316,316L,WCB
2)Working Pressure: 200PSI,PN16
INTRODUCTION
Descriptions:
1) Thread ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
2) Inspection&Testing:API 598
3) Material: ASTM A351-CF8,CF8M,SS316,SS304
4) Size: 1/2”~ 4”
5) Working pressure: 200PSI/ PN16
6) Working Temperature: from -20°C to 180°C
7) Working medium: Water, Oil, Gas, Steam,Acid, etc
Features:
1) Investment Casting Body
2) Metal Sealing
3) Non-rising Stem Design
4) Hand Wheel Operation
5) Threaded type: NPT,PT,BSP,BSPP,BSPT,DIN is available
Pressure Testing:
|
Standard Pressure |
200PSI |
|
Shell Pressure Testing |
2.4 Mpa |
|
Water Seal Testing |
1.8 Mpa |
|
Air Seal Testing |
0.6 Mpa |
