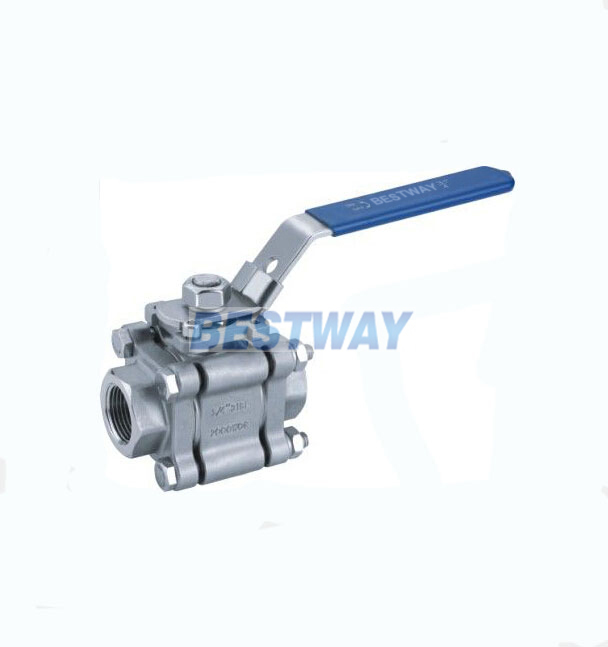

Product Numbers:BW305
Product description:
1)Material:CF8,CF8M,CF3M,201,304,316,316L,WCB
2)Full Port
3)Working Pressure: 2000PSI,PN125
INTRODUCTION
Descriptions:
1) Design standard: ASME B16.34, API608
2) Threads ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
3) Testing: API 598
4) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304
ASTM A216-WCB
5) Size: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
6) Working pressure: 2000 PSI,PN125
7) Seat Material: PTFE,RPTFE,PPL
8) Working temperature: -20 to 180°C(PTFE) ,-20 to 300°C(PPL)
9) Working medium: Water, Oil, Gas, Steam, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Full Bore
5) Threaded type: NPT,PT,BSP,BSPT,DIN is available
6) Locking device is available
Pressure Testing:
|
Standard Pressure |
2000 PSI |
|
Shell Pressure Testing |
20.8 Mpa |
|
Water Seal Testing |
15.2 Mpa |
|
Air Seal Testing |
0.6 Mpa |
