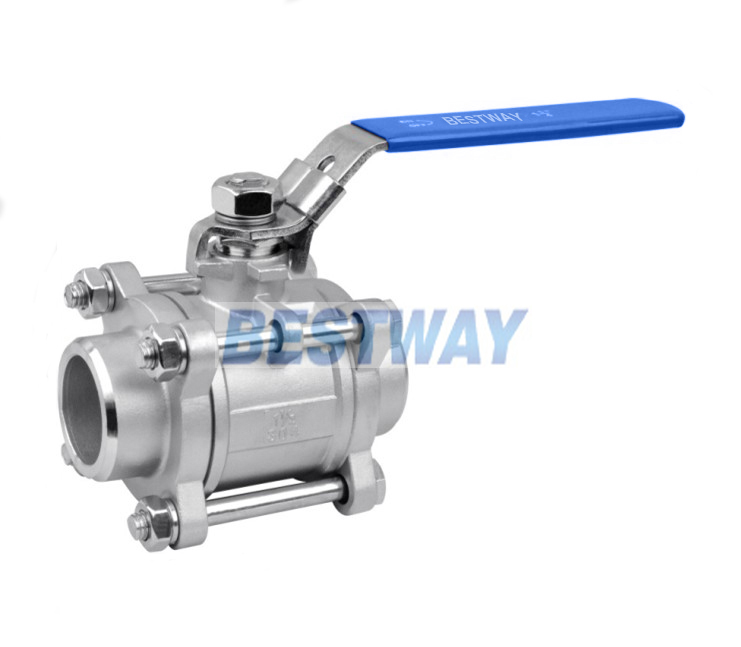

Product Numbers:BW302
Product description:
1)Material:CF8,CF8M,CF3M,201,304,316,316L,WCB
2)Full Port
3)Working Pressure: 1000PSI,PN63
INTRODUCTION
Descriptions:
1) Design standard: ASME B16.34, API608
2) Butt-welding ends:ASME B16.25
3) Testing: API 598
4) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304
ASTM A216-WCB
5) Size: 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”,2-1/2” ,3” ,4”
6) Working pressure: 1000 PSI,PN63
7) Seat Material: PTFE,RPTFE,PPL
8) Working temperature: -20 to 180°C(PTFE) ,-20 to 300°C(PPL)
9) Working medium: Water, Oil, Gas, Steam, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Full Bore
5) Locking device is available
Pressure Testing:
|
Standard Pressure |
1000 PSI |
|
Shell Pressure Testing |
10.4 Mpa |
|
Water Seal Testing |
7.6 Mpa |
|
Air Seal Testing |
0.6 Mpa |
