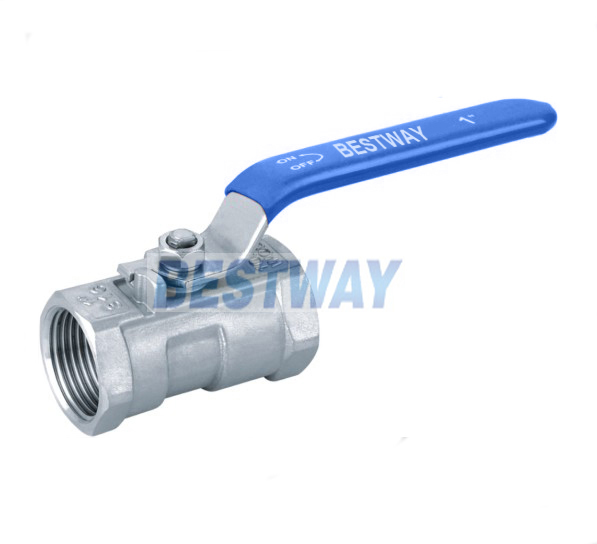

Product Numbers:BW104
Product description:
1)Meterial: CF8,CF8M,CF3M,201,304,316,316L,WCB
2)Reduce Port
3)Working Pressure:1000PSI,PN63
INTRODUCTION
Descriptions:
1) Design standard: ASME B16.34
2) Threaded ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
3) Testing: API 598
4) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304
ASTM A216-WCB
5) Size: 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”,2-1/2" , 3", 4"
6) Working pressure: 1000 PSI ,PN63
7) Seat Material: PTFE,RPTFE
8) Working temperature: -20 to 180°C
9) Working medium: Water, Oil, Gas, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Reduce Bore
5) Threaded type: NPT,PT,BSP,BSPT,R,Rc,Rp,DIN is available
Pressure Testing:
|
Standard Pressure |
1000 PSI |
|
Shell Pressure Testing |
10.4 Mpa |
|
Water Seal Testing |
7.6 Mpa |
|
Air Seal Testing |
0.6 Mpa |
