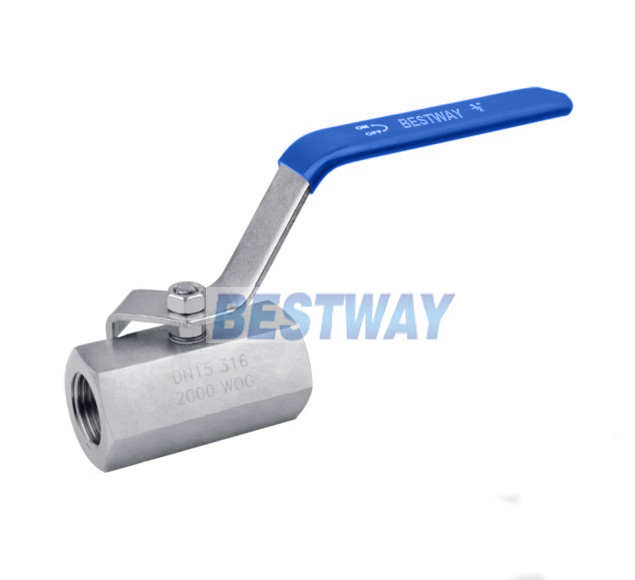

Product Numbers:BW002
Product description:
1)Material:F304,F316,A105
2)Reduce Port
3)Working Pressure: 2000PSI,PN125
INTRODUCTION
Descriptions:
1) Threaded ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
2) Material: F316,F304,A105
3) Size: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
4) Working pressure: 2000 PSI,PN125
5) Seat Material: PTFE,RPTFE
6) Working temperature: -20 to 180°C
7) Working medium: Water, Oil, Gas, Acid, etc
Features:
1) Forged Stainless Steel
2) Reduce Bore
3) Threaded type: NPT,BSPP,BSPT,DIN is available
Pressure Testing:
|
Standard Pressure |
2000 PSI |
|
Shell Pressure Testing |
20.8 Mpa |
|
Water Seal Testing |
15.2 Mpa |
|
Air Seal Testing |
0.6 Mpa |
